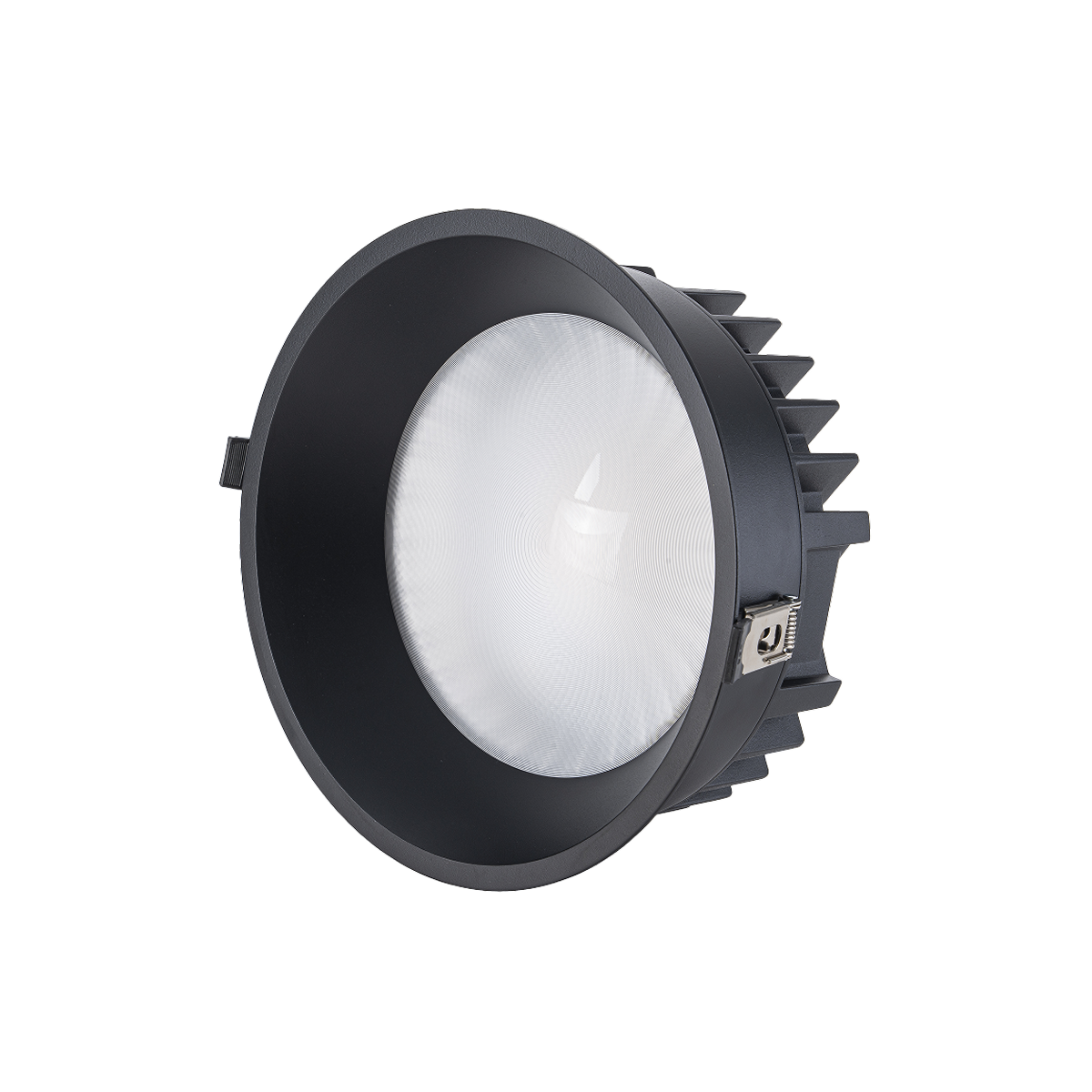

MONITOR 20 M 120 SMD

MONITOR collection is all about functionality. The perfect light effect creates a uniform illumination.  The collection comes in 4 sizes with 15W, 20W and 30W and 40W with clear and frosted glass for option. IP65 maks is possible to use the lamp for wet zones where additional water resistance is required.

Available colors:
23225-W20-120
23225-B20-120
Beam angle:
55°
LED Color:
2700K 3000K 4000K 6000K
System Power:
20W
CRI:
90
Lumen output:
2400lm
Material:
aluminium
Location:
Interior
Fixation:
Ceiling
Installation:
Recessed

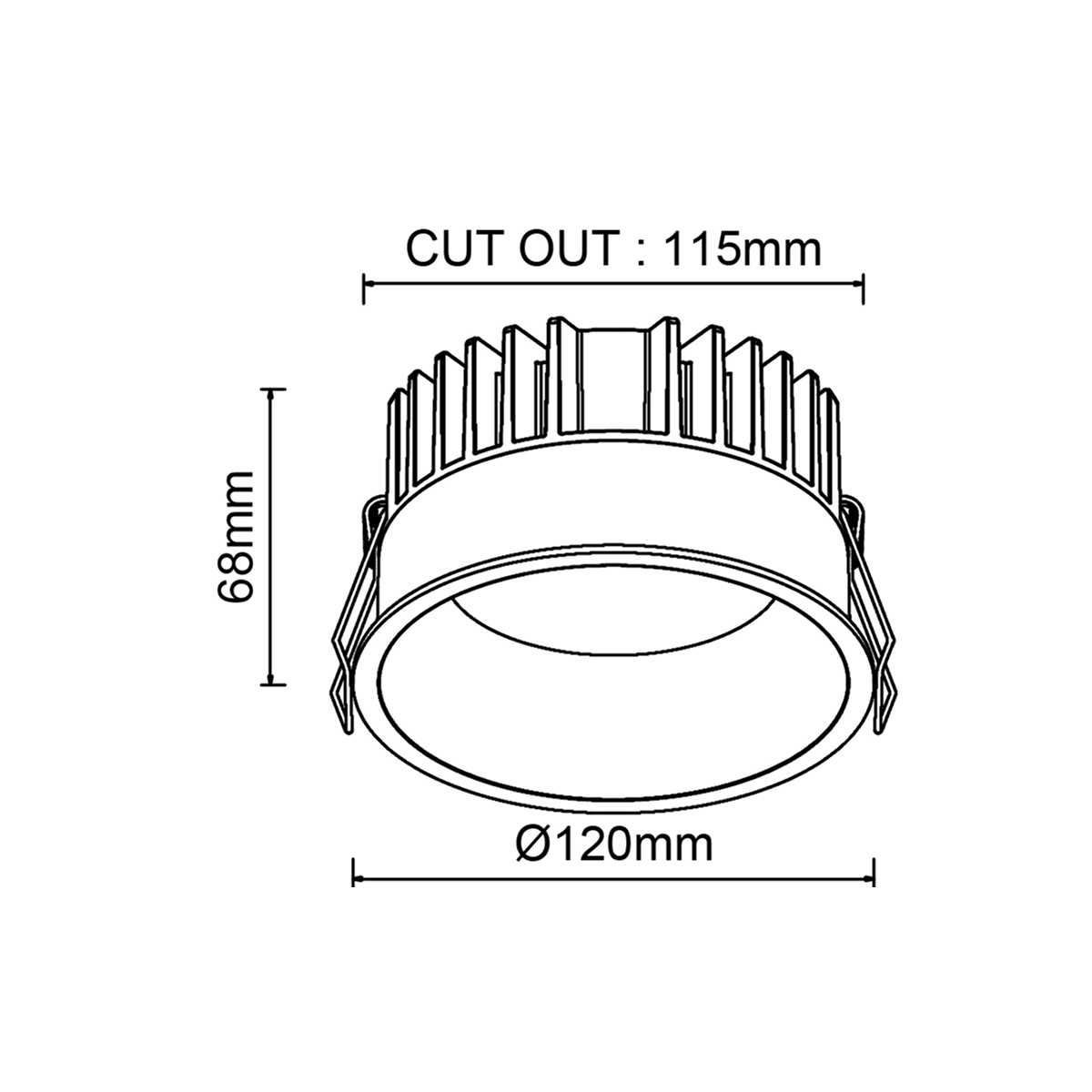

Product dimension:
diam115mm
Cut hole size:
diam120x68mm
Input:
220-240V 50/60HZ
IP:
65
Class:
III
DIM Option:
DALI 1-10V DTW TD
select options
contact OUR manager
Download PDF
